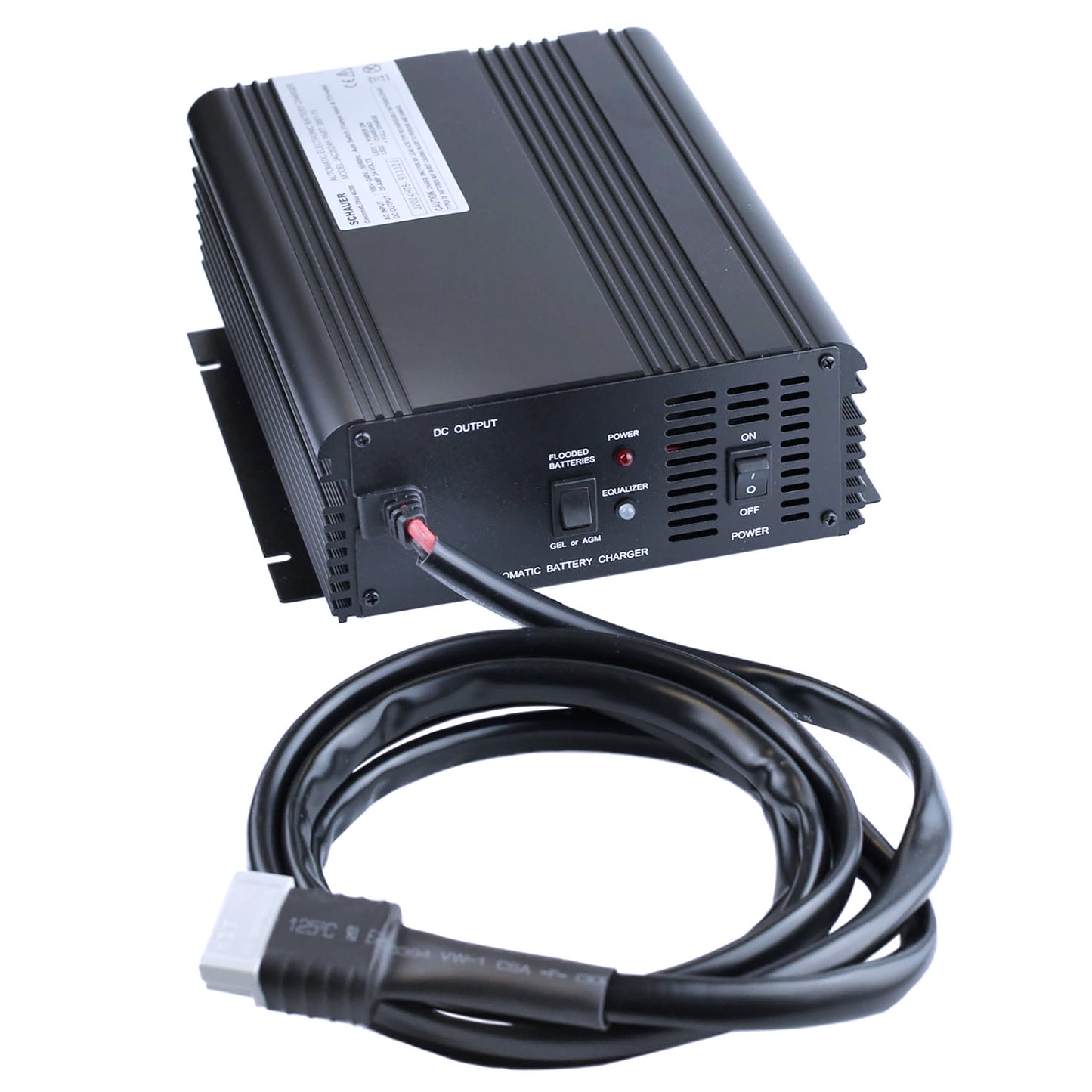

Battery Charger, 24 Volt Plug-In 110 Volt Outlet

Battery Charger, 24 Volt Plug-In 110 Volt Outlet

SKU:JAC2024H

Regular price $330.00 USD
Regular price Sale price $330.00 USD
Sale Sold out
This 24 Volt plug in charger is used to recover low batteries.  Although the Any Level Hydraulic system comes with a Street charger to charge the two lift batteries while you are driving, the onboard Street Charger is not meant to recover dead batteries from over-usage.  Use this 24 Volt plug-in charger to charge both hydraulic batteries at once.  Make sure the charger is set to Gel/AGM, plug the grey plug of the charger into the corresponding grey plug on your mount box, and turn the charger on.  This charger will charge dead batteries in 2-3 hours and will turn off on its own after the batteries are fully charged.

Voltage: 24 Volt

Capacity: 20 Amp

Input voltage: 115/230 volts, 50/60Hz (Autosensed)

Length: 3"

Width: 10"

Height: 7.5"

Warranty: 2 Year Factory Direct

Features:

  • Charge control: constant current charge to a constant voltage, then to a float standby.
  • Current limiting.
  • Fully automatic 3 stage 24 volt, 20 amp battery charger can be left on the battery in maintaining/float mode.
  • Can be set for any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Cyclic voltage: FLOODED 2.5 volts/cell; GEL & AGM 2.4 volts/cell. 2.6 volts/cell for 36 & 48 volt batteries. May be preset to customer's specification for battery type.
  • Not intended for use as a DC power supply.
  • Continuous - 100% duty cycle.
  • Low voltage start: will start charging a deeply discharged battery with terminal voltage less than 4 volts.
  • Reverse polarity and short circuit proof.
  • Aluminum case.
