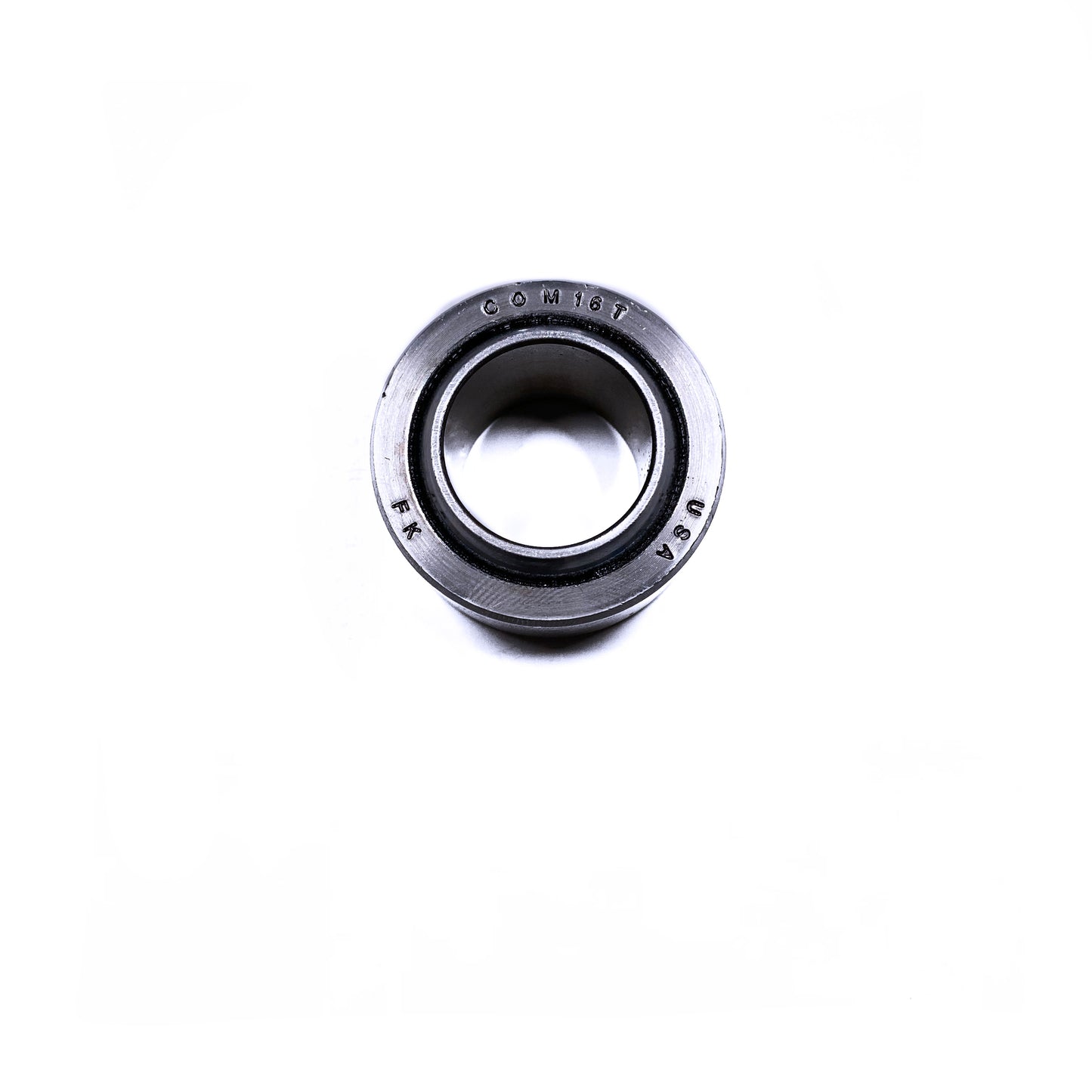

Bearing, Uniball, 1" bore, 1.75" OD

Bearing, Uniball, 1" bore, 1.75" OD

com16t

$20.99 USD
$20.99 USD
Sale Sold out
These bearings are used at the pivot point of our Patented Lever Arms.
Receiver Race Diameter: 1.7500 in.
Race Width: 0.797 in.
Inner Ball Width: 1.000 in.
Inner Ball Diameter: 1.0000 in.
Rod End Ball Diameter: 1.500 in.
Chamfer Reference: 0.044 in.
Rod End Misalign Angle: 10 degrees
ULT. Static Radial Load (lbs.): 55,200 lbs.
Rod End Bearing Material: Steel
Notes: Bearing has a PTFE liner.



FK COM/COMH spherical bearings are part of their commercial series. Precision-made from quality materials, these rod end bearings are tough and reliable to handle your stressed applications. Order the size, load rating, and other options needed for replacement or upgrade.

COM/COMH Series offers:

* 52100 heat-treated steel with hard chrome plate ball
* Low-carbon steel and oil coated race
