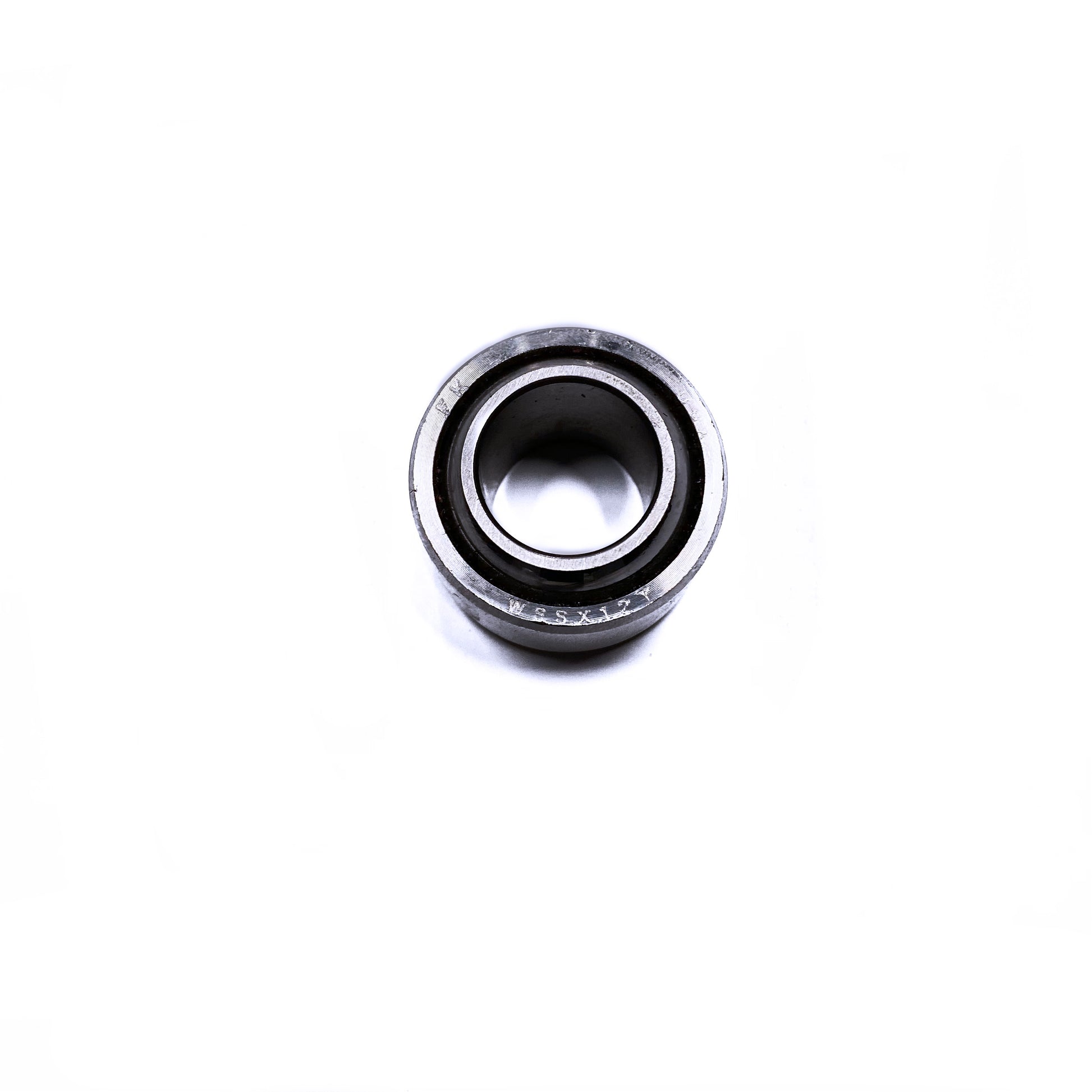

Bearing, Uniball, 3/4" bore, 1.375" OD

Bearing, Uniball, 3/4" bore, 1.375" OD

wssx12t

$32.20 USD
$32.20 USD
Sale Sold out
These bearings are used on the slider end of the Long Links of our Patented Steering and Panhard Mechanisms.
Receiver Race Diameter: 1.3750 in.
Race Width: 0.630 in.
Inner Ball Width: 0.875 in.
Inner Ball Diameter: 0.7500 in.
Rod End Ball Diameter: 1.250 in.
Rod End Misalign Angle: 13 degrees
ULT. Static Radial Load (lbs.): 26,200 lbs.
Rod End Bearing Material: Stainless steel

FK WSSX-T/WSSX-TV Wide Series spherical bearings are a great choice for fabricating long travel suspension arms and links. They're made from heat-treated stainless steel with a PTFE liner for durability. FK's self-lubricating PTFE liners are chemically bonded to the inner diameter's race, offering a high load-carrying capacity with increased dynamic wear characteristics. Order the size and style of Wide Series spherical bearings designed to fit your application.

WSSX-T/WSSX-TV bearings offer:

* Optional staking groove
* 440C heat-treated stainless steel ball
* 17-4 PH heat-treated stainless steel race
