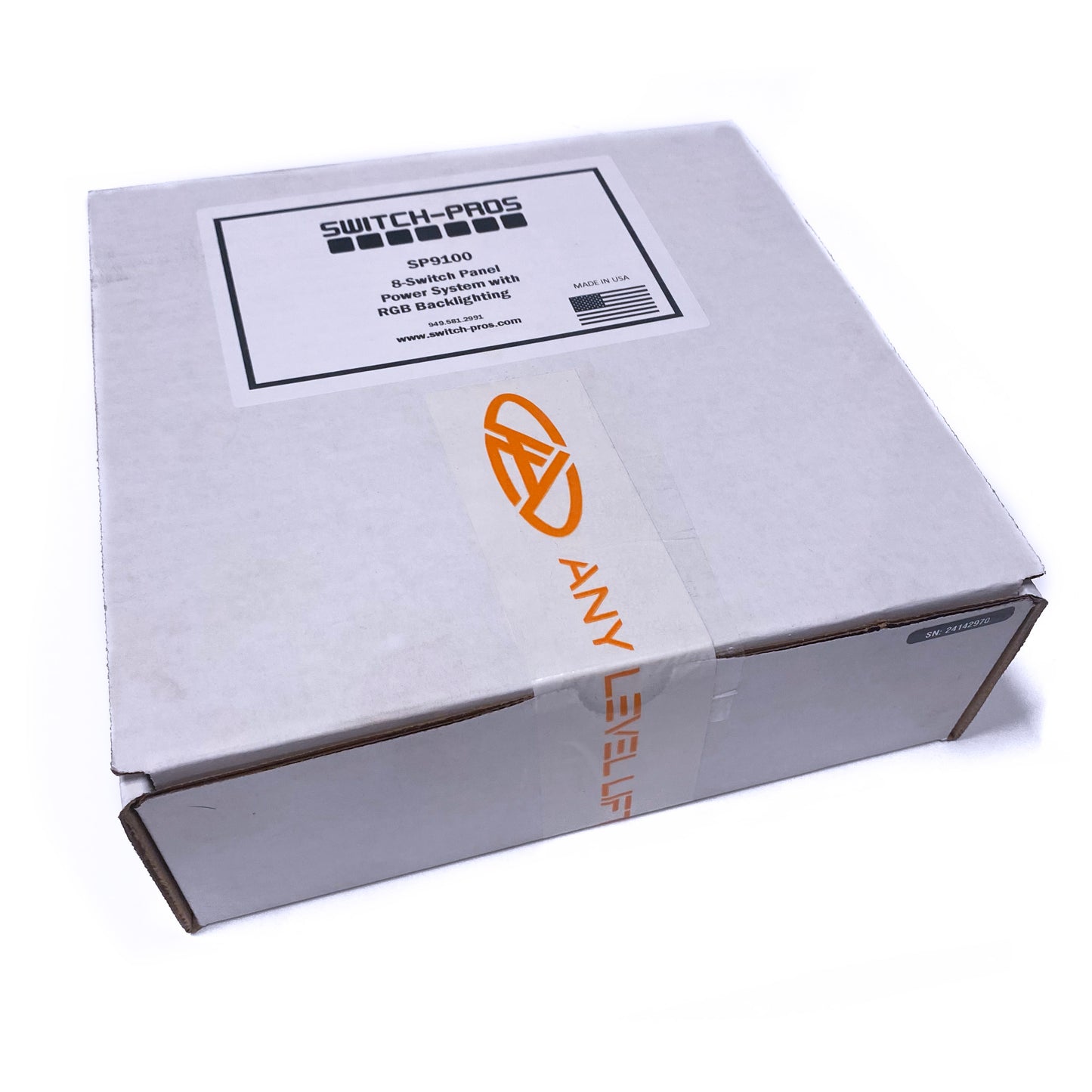

Controller, Cell Phone, Switch-Pro 9100, 8 Channel

Used as the controller for actuating our hydraulic Any Level Lift systems.

Contents

• Switch Panel and Power Module
• RCR-Touch®8 cover
• 11’ of Communication Cable
• Power Cable with 125A inline fuse
• 125 User Selectable Legends included
• Installation brackets and hardware
• 16-pin color coded output harness
• Detailed installation Guide

 Features

• RGB Backlighting
• Built-in Bluetooth module for use with App
• Program and operate your panel from phone
• Battery Voltage Readout on App screen
• Orange LED switch indicators
• LED Input Status Indicators for easy troubleshooting

Specifications

• 125amp capacity with 8 outputs
  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
  • Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 2” W x .375” H
• Power Module Measures 6”L x 3”W x .5”H
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

 Programming & Other Features

• Preset Dimming function WITH MEMORY
• Master Mode, with ability to control up to 7 other switches
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns
• Automatic Power-Up upon vehicle start up
• Time Delay off
• No bulky relay box
• Two External Trigger inputs can each activate four outputs
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module

Proudly made in the USA
