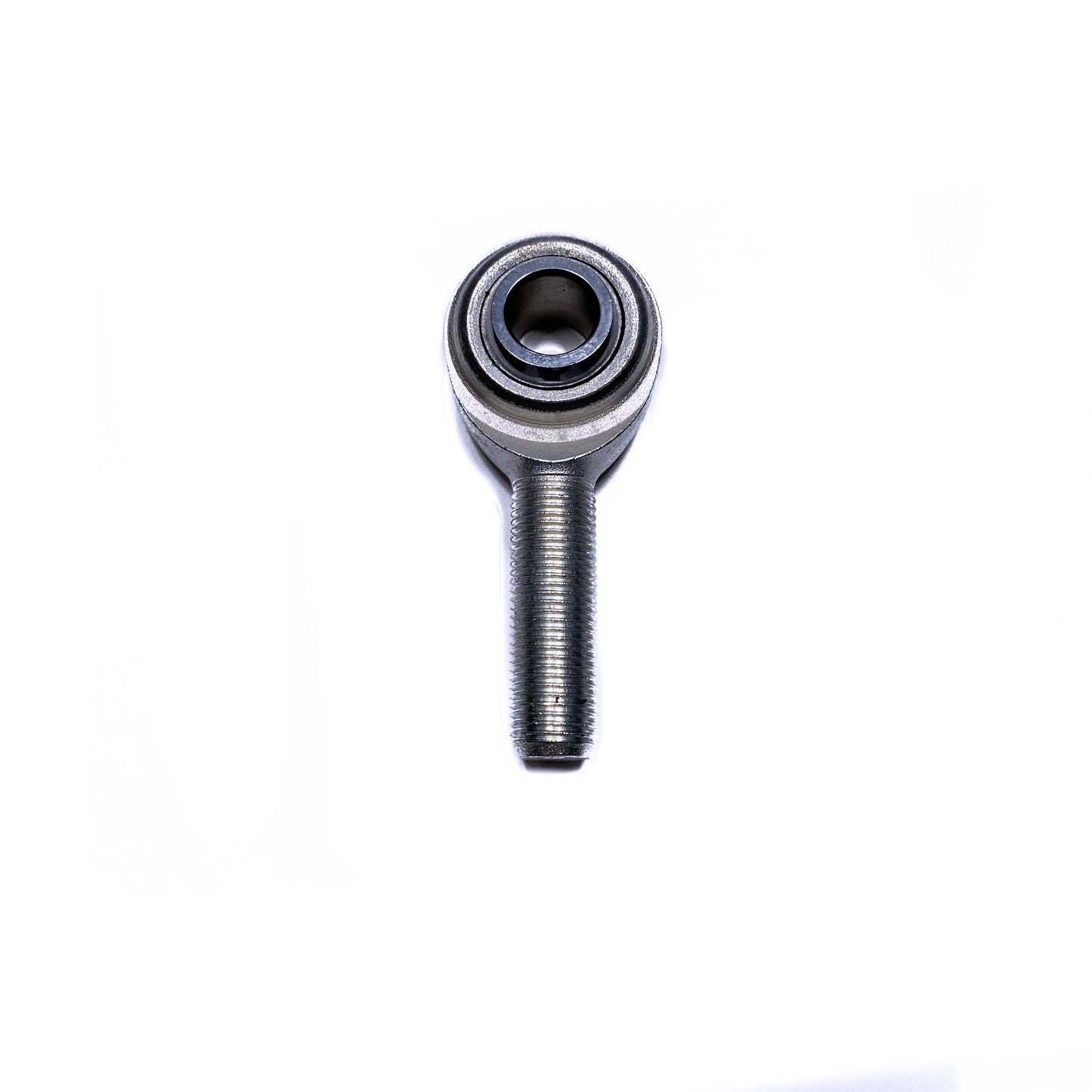

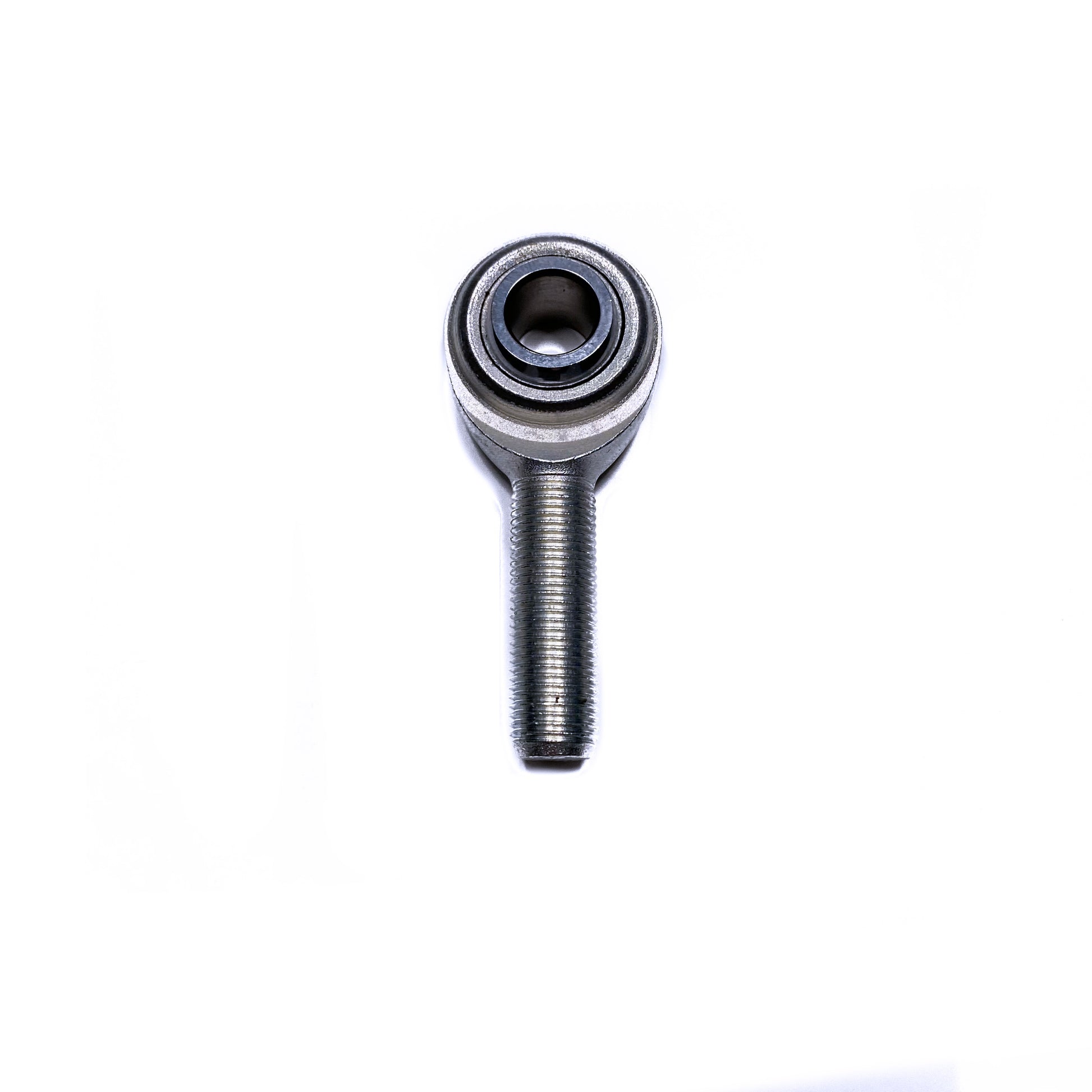

Joint - Heim, 1/2"-20 Right Hand Male Thread, 1/2" Bolt

Joint - Heim, 1/2"-20 Right Hand Male Thread, 1/2" Bolt

CM8T

$17.37 USD
$17.37 USD
Sale Sold out
These heim joints are used on our front sway bar links.
Rod End Thread Size: 1/2 in.-20 RH
Rod End Attachment: Male threads
Rod End Head Bore Size: 0.500 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.500 in.
Rod End Head Diameter: 1.312 in.
Rod End Head Width: 0.625 in.
Grease Fitting: No
Rod End Centerline Length: 2.438 in.
Heat-Treated: Yes
Rod End Ball Width: 0.625 in.
Rod End Misalign Angle: 20 degrees
Rod End Static Load Capacity: 10,046 lbs.
Rod End Material: Carbon steel
Rod End Finish: Zinc plated



FK rod ends are a perfect choice for a high quality, durable rod end. Featuring a coated carbon steel body, heat-treated ball, and PTFE liner they will perform and last.
