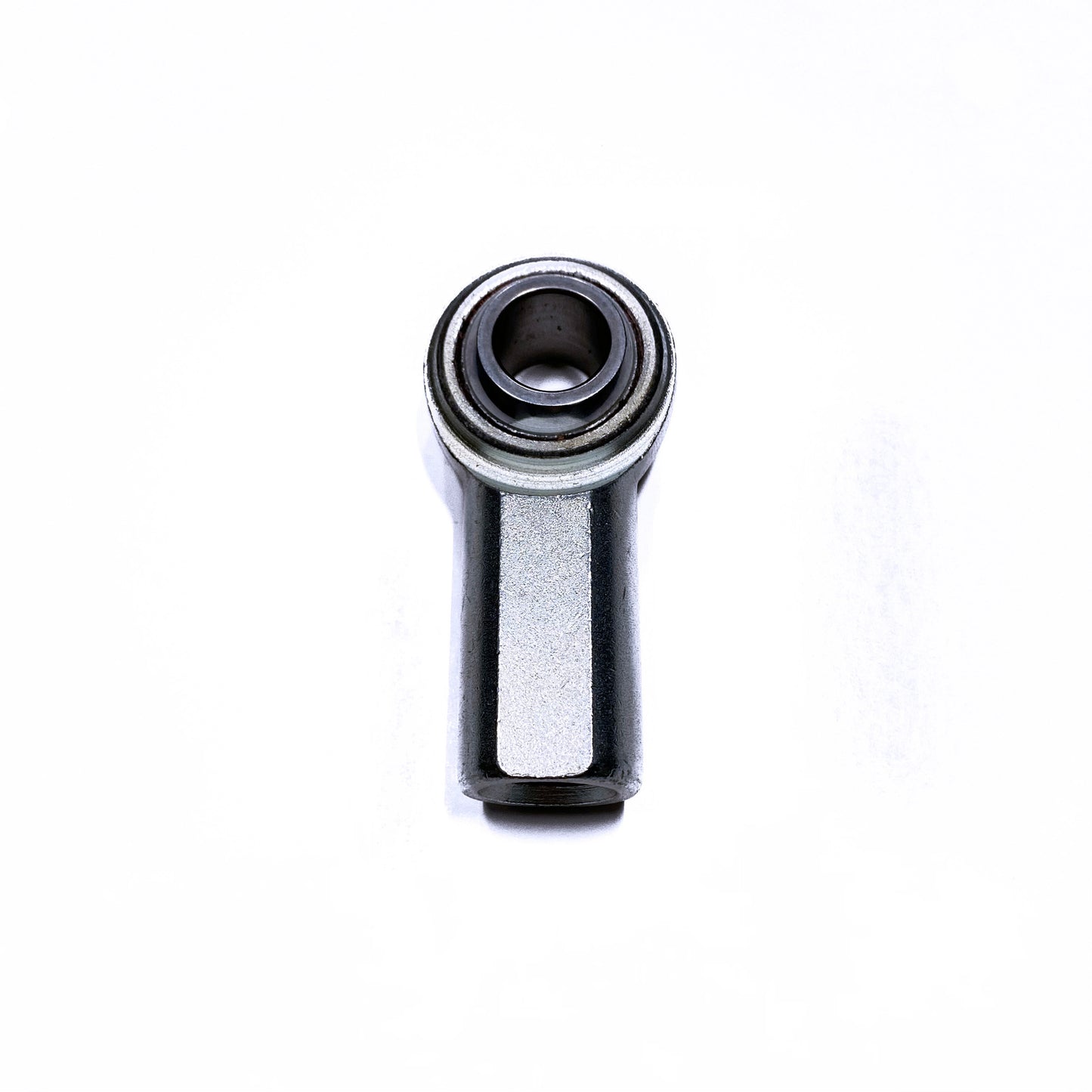

Joint - Heim, 5/8"-18 Right Hand Female Thread, 5/8" Bolt

Joint - Heim, 5/8"-18 Right Hand Female Thread, 5/8" Bolt

CF10T

$14.25 USD
$14.25 USD
Sale Sold out
These heim joints are used on our hydraulic steering assist cylinders.
Rod End Thread Size: 5/8 in.-18 RH
Rod End Attachment: Female threads
Rod End Head Bore Size: 0.625 in.
Rod End Construction: 2-piece
Jam Nut Included: No
Rod End Style: PTFE lined
Thread Length: 1.375
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.750 in.
Grease Fitting: No
Rod End Centerline Length: 2.500 in.
Heat-Treated: Yes
Rod End Ball Width: 0.484 in.
Rod End Misalign Angle: 26 degrees
Rod End Static Load Capacity: 9,800 lbs.
Rod End Material: Carbon steel
Rod End Finish: Zinc plated



FK rod ends are a perfect choice for a high quality, durable rod end. Featuring a coated carbon steel body, heat-treated ball, and PTFE liner they will perform and last.
