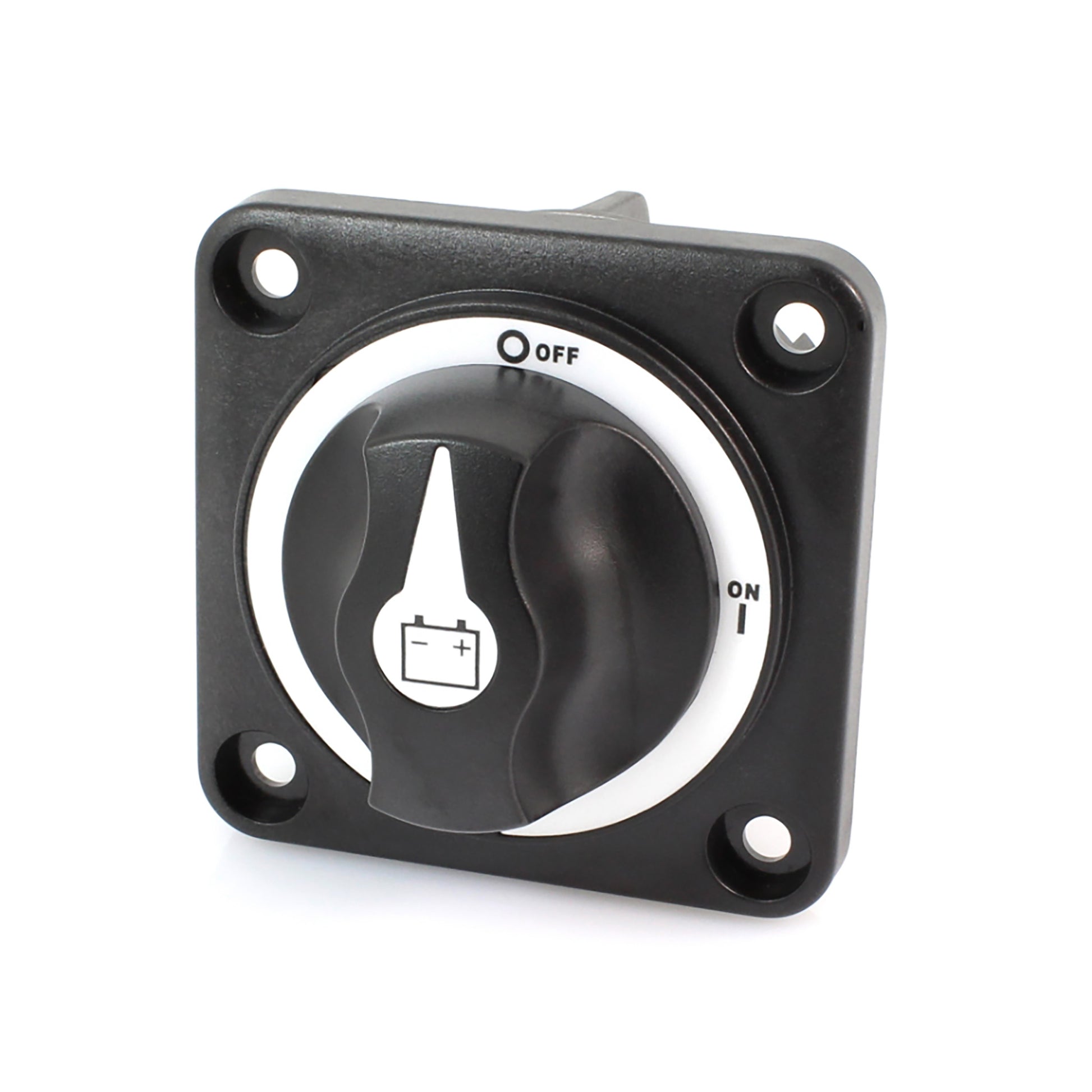

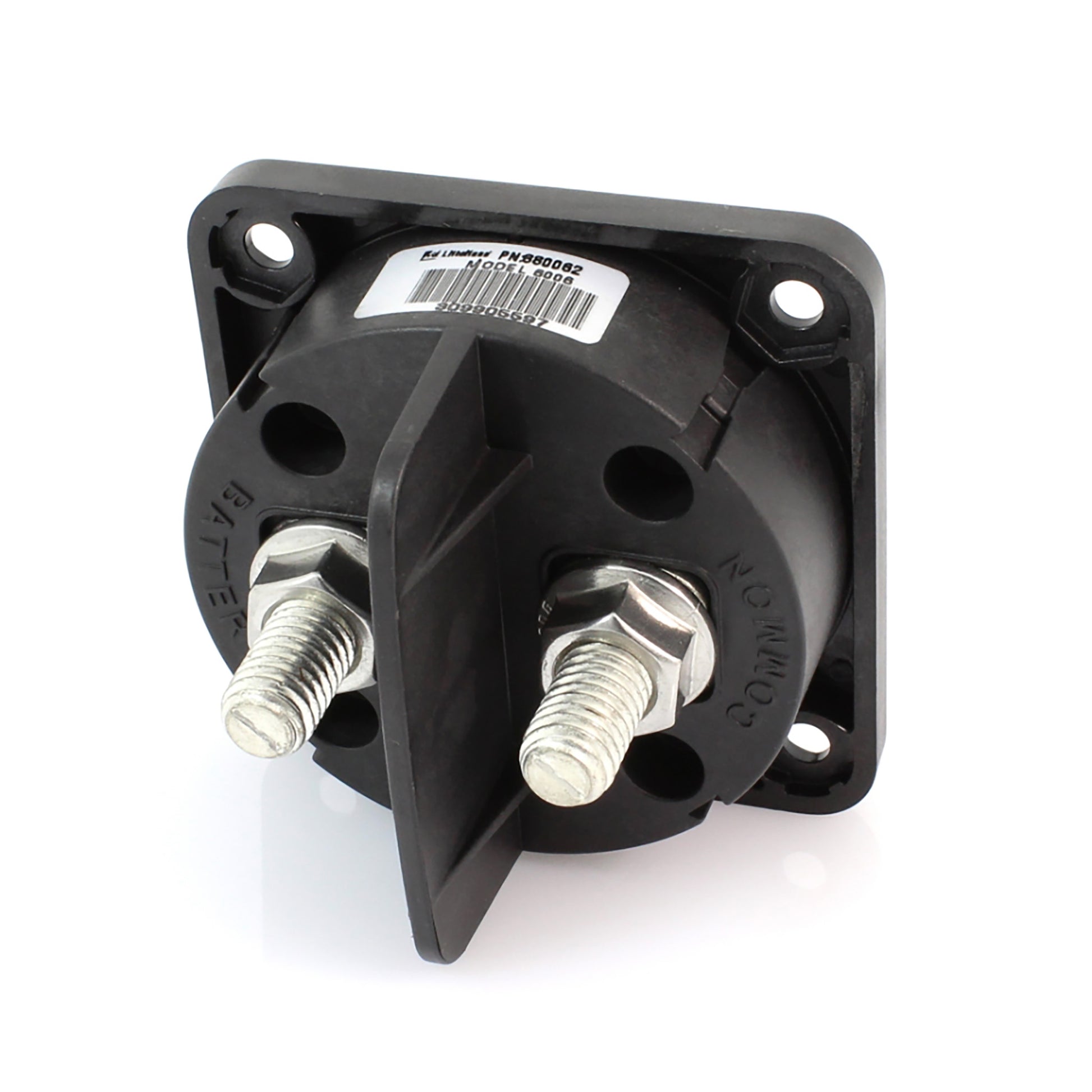

Switch, 300A Panel Mount, Battery Disconnect

This Terra SR Series, 300A Panel Mount Battery Disconnect Switch is used to kill the power to the hydraulic motor of our Any Level Lift hydraulic systems.

• SR Series
• Circuitry: SPDT
• Amp Rating: 300A
• Max Volts: 32V
• Contact Action: On-Off
• Panel mount
• Temp. Range: -58°F (-50°C) to 221°F (105°C)
• Terminal stud size 3/8"-16 x 7/8" Long
• Isolate high current DC circuits from battery sources
• Stainless steel hardware and tin-plated copper studs
• Ignition protection to SAE J1171 and ISO 8846 for installation in a battery box of on vehicles carrying hazardous loads
• Internal components protected from harsh weather environments: IP66 & IP6K9K rated
